RSR – Rotary punching machine
Precision punching
machines for tea tags
and tea bags on roll stock
machines for tea tags
and tea bags on roll stock
Innovative punching technology with multiple winding for maximum efficiency
Schobertechnologies stands for maximum precision and process reliability in punching. Our rotary punching units are specially designed for the requirements of tea labels, tea bags, narrow web products and process a wide variety of materials. Burr-free at widths up to 2,000 mm and speeds up to 800 m/min. Even the finest punching patterns with hole diameters from 0.5 mm are reliably implemented and waste is safely removed. For over 75 years, we have been developing high-performance rotary punching solutions for industrial and laboratory applications – inline or as offline systems.
Maximum working width 2,000 mm
Maximum speed 800 m/min
Hole diameter from 0.5 mm
Multiple winding possible

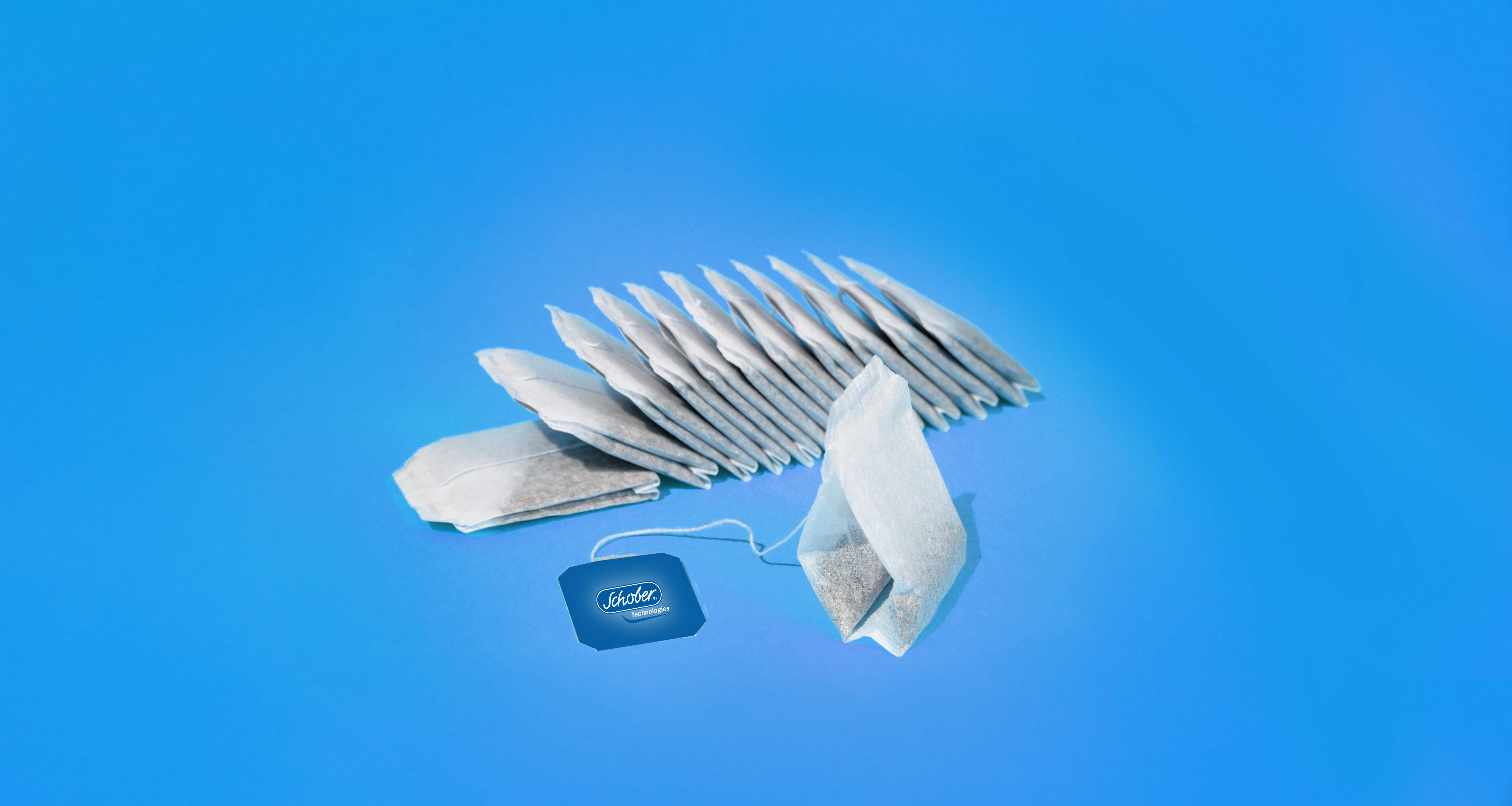

Punching system for high-precision production of tea bags and tea tags
Our rotary punching units with longitudinal cutting units and multiple rewinding are consistently designed to meet the special requirements of filter materials for tea bags and process a wide variety of materials in different widths without burrs. This allows a wide variety of applications to be realized flexibly and reliably. On request, we can develop individual punching patterns for you that are precisely tailored to your production and products.
RSR – Rotary punching machine
Perfectly perforated and lengthwise cut products
Watch our video to see how perforated or profiled individual rolls are manufactured from film, foil, paper, or cardboard with maximum precision and dynamism.
Here are the technical features of this rotary die-cutting machine:
- Standard working widths: 260 to 520 mm (special dimensions available on request)
- Mechanical speed: 150 m/min
- Driven material unwinding, electronically controlled
- Web edge control with integrated splice table
- Basic unit for accommodating product-specific punching inserts
- Longitudinal cutting station with pneumatically operated knife holders for separating the webs, minimum web width 20 mm
- Double rewinding with constant winding tension, variable for core diameters 76 (3“) to 152 mm (6”), optional semi-automatic non-stop rewinding
- Automatic circumferential register control for precise punching of the printed material web
- Extraction for edge strips and punching waste
- Minimum material thickness 50 µm (film), minimum basis weight 120 g/m² (paper), depending on tensile strength
- Sophisticated control concept for dimensional accuracy
- Suitable for industrial production
Accessories
Punching units
Optionally available with integrated longitudinal cutter for installation in printing machines or processing systems for producing rounded corners for tea tags and bags. The immediate longitudinal cut after punching enables extremely precise positioning of the cut edge relative to the punching profile.
Stamps and die holders
Freely selectable punching contours possible
We provide everything you need for highly efficient punching. We do not only have punches and dies in our range. We also offer the possibility to resharpen your tools in our workshop - completely sustainable.
Take a look at our online shop, where you can order replacement and wear parts quickly and easily at any time.
All data at a glance
Are you interested in rotary punching machines? We would be happy to send you accompanying materials with further information.
