• High quality, persistent and precise
    Magnetic cylinder
    with maximum
    holding force

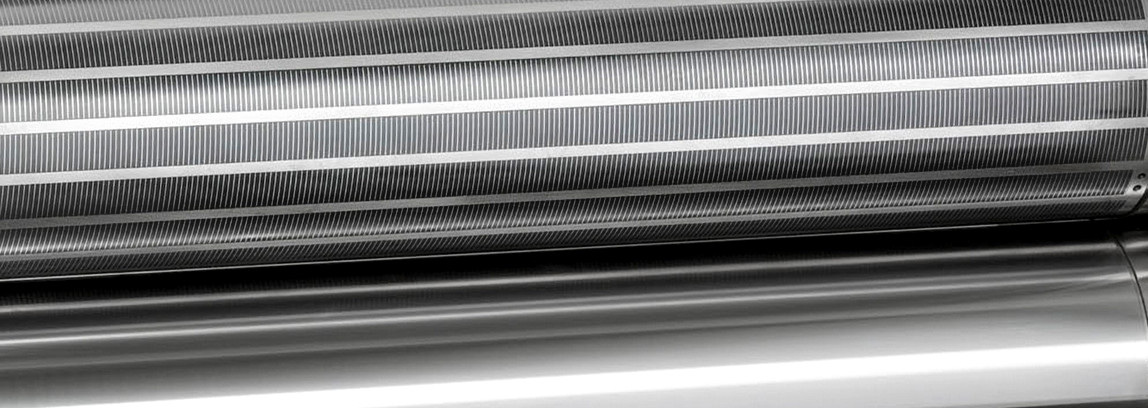

    Schobi schwerbt neben einem Magnetzylinder und einem Aggregat, welche blau angestrahlt werden

Magnetic cylinders for flexible punching, cutting and creasing

Integrated magnetic cylinder solutions

With our magnetic cylinders, you benefit from maximum flexibility and precision. They allow the use of a wide variety of punching and cutting tools, offering fast setup times, long service life and highest accuracy. Ideal for applications in the label, packaging and security printing industries.

Schobertechnologies is a specialist in the production of large, high-precision XXL magnetic cylinders. Our high-quality XXL magnetic cylinders have been developed with a high level of technical expertise and guarantee the highest accuracy and holding force during the creasing and cutting process.



Regardless of how complex your application is, our XXL magnetic cylinders ensure an exact, flawless, high-quality process.

Rely on our expertise and we will provide you with the right magnetic cylinder solution for your converting machine.

Working width up to
2.000 mm
Circumference up to 62“
(1.570 mm)
Diameter
up to
500 mm
A magnetic cylinder aggregate stands on a blue background.

High-performance module for holding cutting plates

  • Preset pressure setting
  • High precision bearings and bearing stones
  • "Gap Control" system for high-precision wear compensation of the cutting edge
  • Eccentric quick lift-off device for the upper magnetic cylinder
  • Anvil cylinder, hardened and grinded, with optional coating
Contact
A magnetic cylinder aggregate stands on a blue background.

High-performance module for gripping positive and negative creased plates

  • Mechanical pressure module with threaded spindles
  • High precision bearings and bearing blocks
  • Eccentric quick lift-off device for the upper magnetic cylinder
  • Cross adjustment of the upper magnetic cylinder
  • Set gear pair with circumferential register adjustment
  • mounted on both magnetic cylinders
Contact
Two magnetic cylinder units stand on a blue background. The housings are graphically transparent.

Secured cutting waste removal

Our magnetic cylinders feature the latest technologies for secured cutting waste removal.

  • Suction and blowing air device
  • Waste needles with scraper comb
Contact
A magnetic cylinder unit with two magnetic cylinder drums stands on a blue background. Thereby the housing is transparently attenuated.

Customized holding force

Schobertechnologies’ magnetic cylinder solutions are characterized by their excellent magnetic retention force. Depending on the application and requirements, magnets with a strong magnetic field can be used in addition to standard magnets.



  • Standard and/or high-energy magnets
  • Linear or staggered arrangement of the magnetic fields
Contact
