Cutting & Perforating for flexible Materials and Packaging
Longitudinal, cross, contour, kiss cuts and perforations for films, labels and packaging.
With our rotary cutting and perforating technologies, you achieve precise results across a wide range of materials. Whether straight cuts, curved lines, die-cuts or micro-perforations – our systems are designed for maximum efficiency and quality. Ideal for applications in packaging, labels and technical products.
Schobertechnologies develops, manufactures and supplies rotary tools, modules or complete production lines in a wide variety of designs. Mechanical cutting or perforating can be done by using cutting-, anvil cylinders, circular knives and industrial blades.
The combination of cutting materials can be specially adapted to your application. Production speeds of up to 600 m/min are common for rotary cutting.
The different cutting processes are used in the production of aseptic packaging, blister packaging, batteries & fuel cells, folding cartons, beverage carriers, cigarette packaging, tissue-, tea- & coffee packaging, test strips, sanitary towels, diapers, incontinence products, pads, solar cells, ...
Contour cutting technologies for complex shapes
Achieve high-quality contour cutting
With our contour cutting technologies, even complex shapes can be realized in the highest quality. Schober’s rotary systems combine flexibility, precision and productivity – ideal for customized packaging designs, labels and specialty products.
Rotary cutting technologies are used for the form cutting of materials, laminates, non-wovens and films as thin as 10μm. Using state of the art CNC-technique almost any imaginable cutting contour can be achieved. Small product quantities are mostly die cut with monobloc cutting cylinders (HSS), made of tool steel or by the use of magnetic cylinders/flexible dies. Larger product quantities are preferably made with segemented die cutting tools. High alloy steel, powder metallurgical steels or tungsten carbide are primarily used as cutting segment materials. Die cutting segments can be exchanged easily when damaged. All die cutting materials serve as well as anvil materials. In addition coatings can be chosen to protect against corrosion, wear and sticky materials.
These cutting cylinders can be mounted into existing frames or into high precise modules made by Schobertechnologies. Schobertechnologies modules offer features for setting and controlling the die cutting/converting gap by microns. Exact product separation, wear compensation and maximum life time of the die cutting tool go without saying.
Combined die cutting/creasing tool
Die cutting cylinder with combined vacuum and air blast device
Module with die cutting tools for cigarette blanks
Rotary die cutting-perforating module for blister production
Die cutting cylinder for incontinence products with internal waste-extraction
Window die cutting segment
Magnetic cylinder with flexible dies
High-speed heavy duty rotary die cutting module with Quick-Lifting Device
Cutting cylinder for surgical-gloves
Half cut & kiss cut for flexible material processing
Precise separation without damaging the liner
In half cutting or kiss cutting, material layers are precisely separated without damaging the carrier material. Schobertechnologies ensures maximum accuracy, long tool life and efficient production – ideal for the label and packaging industry.
Half cuts (e.g. for opening aids or self-adhesive labels) are used for the targeted cutting or perforation of single-layer or multi-layer materials, which can also be equipped with barrier properties. During the ingate only a part of the material thickness will be cut. Since thin materials are also often cut, precise infeed is required.
The micrometrically accurate infeed takes place via conical guide rings (Gap Control System) or electronically via a backlash-free spindle system.
Die cutting module with gap control system (GCS)
Unit with magnetic cylinder and gap control system (GCS)
Label die cutting module with matrix rewinder
Length perforations for packaging, labels & technical applications
High precision longitudinal perforations
Our solutions for longitudinal perforations deliver precise results across a wide variety of materials – from films and paper to cardboard. The rotary systems ensure consistent quality, high speed and maximum flexibility – perfect for packaging, labels and technical applications.
Length perforations are often generated with perforating wheels in rotary cutting machines. In addition to length perforations (for separating materials), corrugated perforations are also produced in some cases to create security features. The perforating wheels can be pneumatically pivoted and lifted using the blade holders. The cutting gap between the anvil cylinder and the perforating wheels can be precisely calibrated for each knife individually using an adjustment device integrated in the knife holder. This has the advantage that new and already refurbished perforating wheels can be used at the same time. Generally, the perforating wheels are driven by the material web or indirectly by the anvile cylinder. Working widths of up to 1000 mm at working speeds of up to 300 m/min are common. The anvil cylinder is usually driven by a servo motor. In addition to the perforating machines, modules and knife holders, Schobertechnologies supplies standard perforating knives from stock. Special sizes can be supplied upon request.
Perforation wheels
Length perforation module
Scissor cutting for clean edges and precise results
High-quality cuts even at high production speeds
With Schober’s scissor cutting technology, you achieve clean cut edges and precise results even at high production speeds. The process is suitable for a wide range of materials such as films, paper or carton, ensuring consistent quality and efficiency in production.
During the scissor cut, the upper knive interlocks with the cutting edge of the bottom knive and is pressed against it by a spring. The targeted shearing of the material produces a smooth cutting edge. This type of knife is used in continuous form and label printing machines, high-performance slitter rewinders and in production lines with high-performance slitting systems for processing paper, films, laminates and cardboard. Schobertechnologies supplies top cutting knives from stock. Lower cutting knives and cutting knife holders can be supplied promptly. Units for holding the knives are manufactured to customer specifications if required. Grinding machines are also available for grinding circular knives on site.
During the scissors cut the upper knife is pressed with a spring against the edge of the lower knife. Due to the shearing process a smooth cutting edge is created.
This knife system is mainly used to convert paper, foil, laminates and cartons in continuous forms and label printing machines, high performance slitters as well as special converting systems with high performance cutting systems.
Schobertechnologies supplies the scissor cutting knives from stock. Counter knives and knife holders can be supplied on short notice. Taylor made modules for the fixation of the knife holders can be manufactured on demand.
Scissor cutting and counter knives
Module with mechanically activated slitting knives
Pneumatically activated slitting knife holder
Pressure cutting for cost-efficient material processing
A proven method for economical cutting
Crush cutting is a well-established process for the cost-efficient cutting of flexible materials. Schober systems provide high process reliability and efficiency, especially in the processing of paper, films and label materials. This solution is characterized by simple handling and strong cost-effectiveness.
During the pressure cut the cutting knife is pressed against a flat surface (anvil cylinder). Compared to the scissor cut, the pressure cut displaces the material. The knife is mainly driven by the web (anvil cylinder) passing by.
Schobertechnologies supplies knives for the installation into existing machines and/or to be fixed into knife holders made by Schobertechnologies.
Pressure cutting and perforation knives
Knife holder - mechanically and pneumatically activated
Cross cut & cross perforation for versatile applications
Efficient cross cutting and perforating processes
With Schober’s rotary cross cut and perforation systems, materials are processed with maximum precision and consistency across the web. The solutions are ideal for packaging, labels and technical applications, delivering high accuracy, long tool life and efficient production.
Cross-cutting knives, hardened and grinded, made of high-alloy steel are used in electronically controlled cross-cutting machines. Cross-cutting knives and perforating lines can be tensioned mechanically or pneumatically (quick-change version). Schobertechnologies supplies standard cutting & perforating lines from stock in commercially available dimensions and cut/bar pitches. Both as single pieces and on rolls. Special designs can be supplied upon request.
Cross perforation cylinder with pneumatical quick change bars
Cross perforation cylinder with mechanical clamping bars
Format variable cross cut
Cross cutting module with exchangeable cutting blades
Cross cutter with exchangeable cutting knives
Cross cutting knives
Cross cutting/ perforating rules
Blade cutting technology for flexible cutting tasks
Precise cutting with long tool life
Blade cutting delivers precise results across a wide range of materials while ensuring long tool life. Schober combines superior cutting quality with efficient material usage – ideal for packaging and label production.
Using a razor blade is an easy way to separate thin materials such as films. They can be fixed by a magnet (quick change version) or within fixation pins. Some blade holders can be heated to seal cutting edges or to achieve higher converting speeds. Schobertechnologies supplies standard razor blade holders on short notice. Special requests are available on demand.
Mechanical blade holder
Pneumatic blade holder
Tools and modules
For integration into roll fed processing systems
for creasing, embossing, cutting, punching, transferring and sealing. Depending on the conditions on site, additional base frames, drives or complete processing sections can be offered, individually adapted to your requirements.

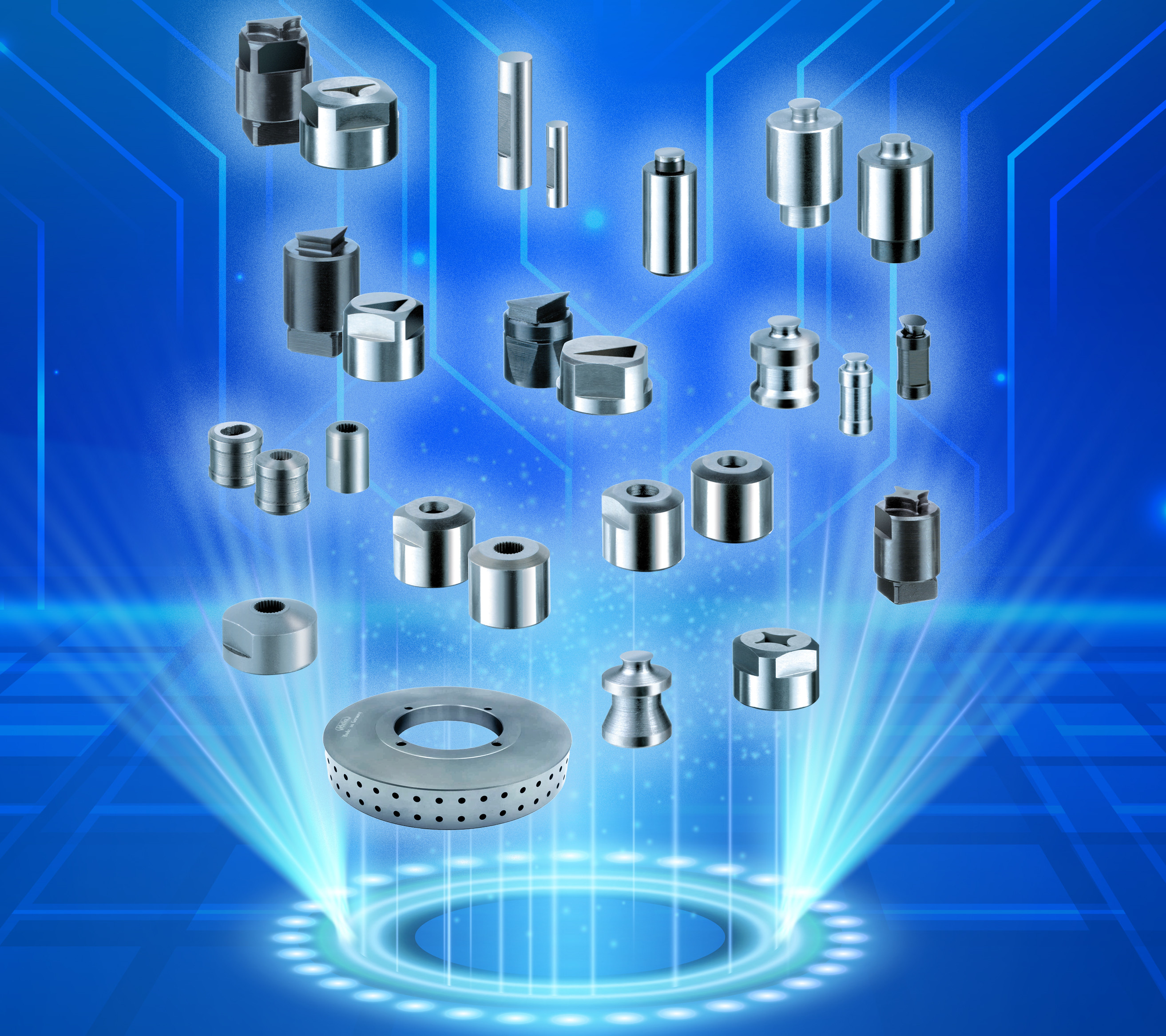

High-quality spare parts
Punches, die bushes, circular knives and perforating lines
available in our web shop (24/7)
An overview of our most powerful and innovative machines in cutting and perforating
RSM IML – Cutting and stacking machine
Innovative rotary cutting of inmould labels
The production facilities of the Schobertechnologies RSM IML series are among the most innovative and efficient machines for manufacturing in-mold labels.
Learn more
RSM HD – Variable format creasing and cutting machine
Process folding cartons efficiently
The new high-tech Schobertechnologies machines in the RSM HD series have been specially developed for processing digitally printed films and packaging materials.
Learn more
